So much warehouse space is wasted by horizontal storage. Posts, columns, and shelving can needlessly take up a large portion of your usable storage area. If you need to store oddly-shaped and sized items, such as pre-packaged lumber or pipes, cantilever racks provide advantages that conventional shelving simply cannot match.

OUR CANTILEVER RACKS & STORAGE SYSTEMS:

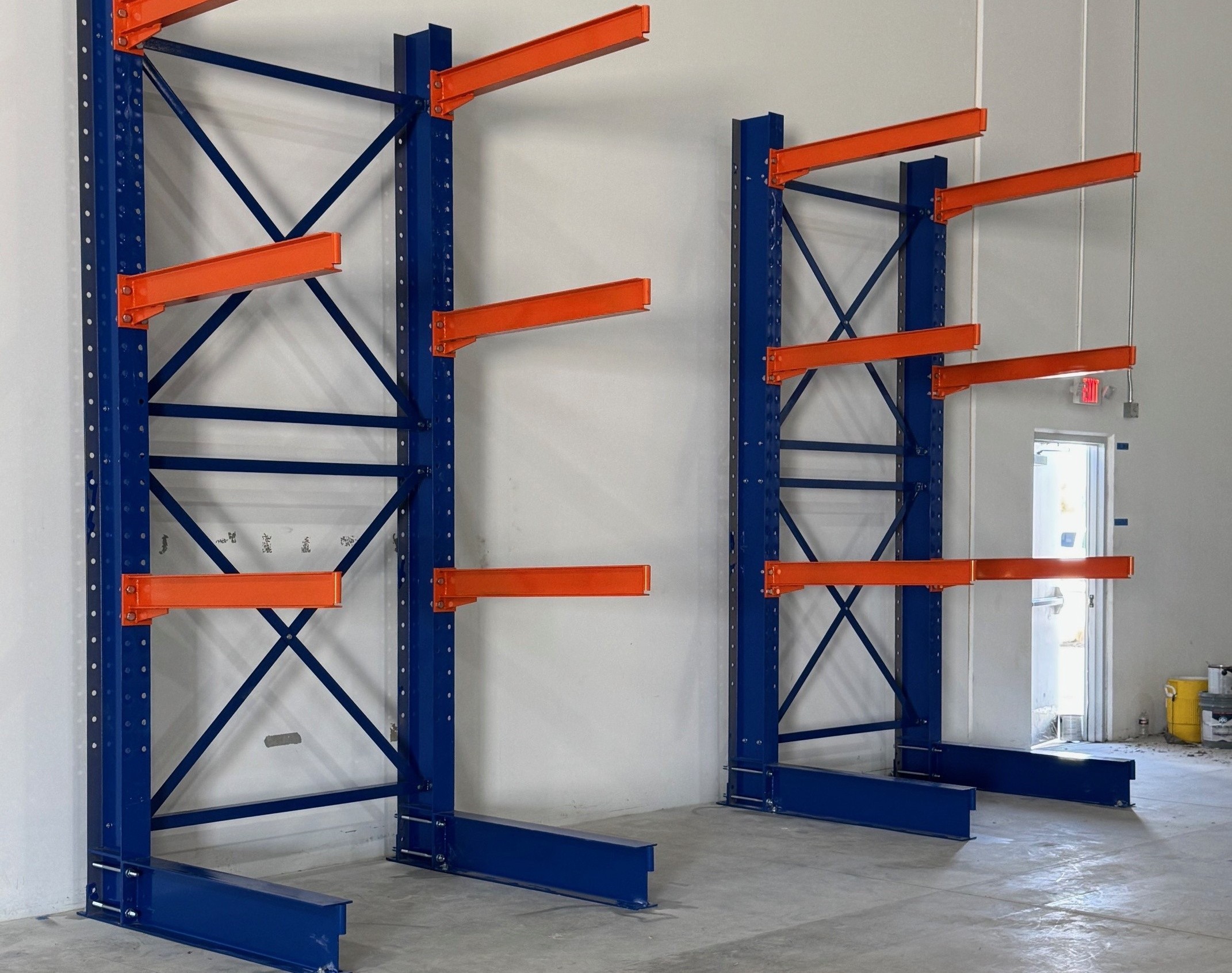

Cantilever Racking System
  • Hold Hard-to-Store Items,
    such as lumber, steel pipes, tubing, & more
  • Utilize Vertical Space
    to get the most out of your warehouse
  • Provide Flexible Design
    to customize your storage system for your needs

Since cantilever rack uses arms, rather than beams, it is easy to change the height level of the arms. Depending on the size of your storage load, you can even add more cantilever arms to increase holding capacity. This reduces handling time and allows you to get more done in less time. When you can configure your racks exactly as you need them, stock is more accessible, enhancing productivity and accuracy across the board.

CANTILEVER RACK TYPES AND USES

Cantilever racks, also known as lumber racks or pipe racking, are heavy-duty storage racks meant to hold long, bulky items that would otherwise be difficult to store in standard pallet racking. One of the biggest advantages to using cantilever racks in your warehouse is the easy access they provide. The open design of cantilever racking allows excellent line-of-sight to find items more easily and accurately.

LUMBER CANTILEVER RACKS

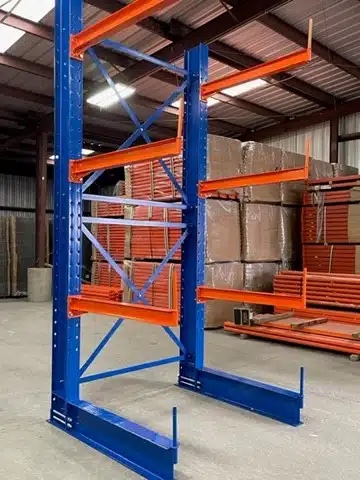

Cantilever Racking System

Cantilever Racks are made with structural columns that support the I-beam arm. These arms are perfect for stacking and storing large pieces of:

  • Lumber
  • Plywood
  • Wooden beams
  • and more

Not sure whether you need light-duty, heavy-duty, or something in between? Get in touch with our storage experts to find the right cantilever racking system for your facility.

Long, thin items that can be especially difficult to store in a typical warehouse, such as:

  • Piping
  • Tubing
  • Steel racks
  • Beams
  • Metal stock

Cantilever racks provide an open design that is highly visible, accessible, and easy to load and unload. Plus, with a sturdy internal support system and flexible design, cantilever racking is perfectly equipped to store even the heaviest items.

Looking to organize your warehouse inventory with cantilever racks? Contact us today to get started.

Our upright cantilever racks come in single or double-sided configurations, which allow for storage on both sides of the rack. This also helps fit more shelving per square foot, regardless of your facility’s size or shape. Simply Rack has a wide variety of sizes, models, and cantilever arm lengths with weight capacities to hold even the heaviest pipes, lumber, and more.

View Some of Our Videos on Cantilever Pallet Racking Systems

WHY CHOOSE SIMPLY RACK?

personalized

PERSONALIZED SERVICE

Our storage and racking solutions are unique to your facility and your needs.

Fabrication icon

IN-HOUSE STOCK & SUPPLIES

Don’t wait for shipping! We have supplies in-stock and ready to be installed in your warehouse.

AutoCAD icon

SUPPORTING SERVICES

We go beyond supplying shelving to offer warehouse design, relocation, & more

CONTACT US

Are you growing? Simply Racks has what you need to expand your warehouse. Are you downsizing or closing? We’ll buy your surplus equipment at a competitive price. Located in the Austin, Texas area, we service the entire I-35 corridor from Oklahoma City down to San Antonio.

CALL US TODAY! (844) 722-7225

CONVENIENTLY LOCATED IN CENTRAL TEXAS

Simply Rack in Central Texas

Cantilever Installation Instructions

Below are photos and installation instructions for the cantilever:
1. Attach base to the column with 4 long bolts. Add the back anchoring kickplate to the column
with the same long bolts. Use flat washer in front in front and locking washer in back in front of
nut.
2. Add arms to the column with 4 M20 (3/4”) bolts with locking washer in back next to nut. Repeat
on all columns.
3. Stand the column and secure with a forklift while standing the 2nd column.
4. Install the 4 horizontals. Horizontals attach to the columns with 4 M12 bolts. The bolts are
shared with a common column. Make sure to add the nut for the common M12 bolt while
standing second column for stability, you will need to remove the nut when adding the 3rd
column.
5. Install the 2 x-brace sets with 5 M12 bolts (4 on each corner and 1 in the middle)
6. Make sure system is level and add anchors. 2 anchors per base + 1 per kickplate in the
back. Stagger the anchoring (example: front left/middle right/kickplate left)

You can also download the instructions here. Cantilever Assembly Instruction

cantilever installation
cantilever install
install
cantilever

Storage Racks Frequently Asked Questions

  • What is a cantilever?

    A cantilever is an inflexible metal structure that is supported on one end, while stretching outward horizontally on the other end. It usually extends out from a strong vertical support like a wall or storage system.

  • Should I use a structural or roll-form rack?

    A warehouse roll-form rack system is the racking of choice for light and medium storage, while on the other hand a structural rack is often the preferred solution for higher density and thicker

    applications. Structural racks are thicker and the heavier construction offers improved resistance to impact from forklifts entering and exiting the racks.
